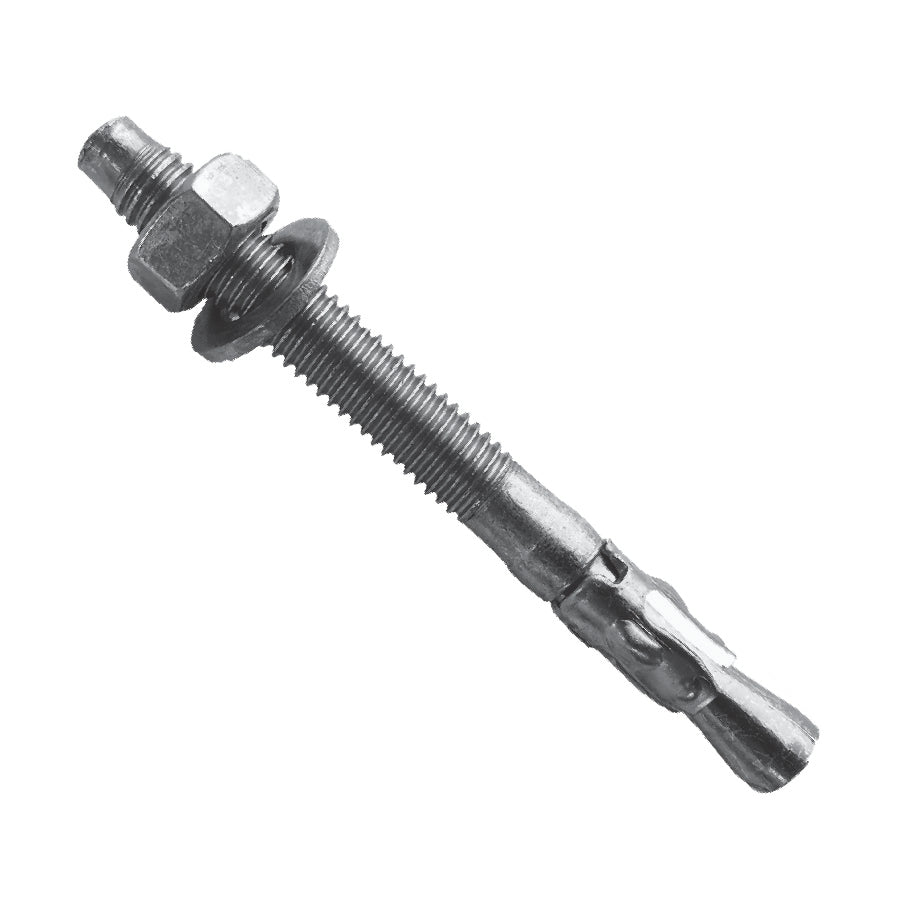

THROUGH BOLT
THROUGH BOLT
My Store
THROUGH BOLT
THROUGH BOLT
Regular price
Dhs. 0.00
Regular price
Sale price
Dhs. 0.00
Unit price
/
per
Specifications:
• Carbon Steel Q195
• White Zinc Plated
• For Fixing of Pipe Ducts, Handrails, Storage Racking Etc.

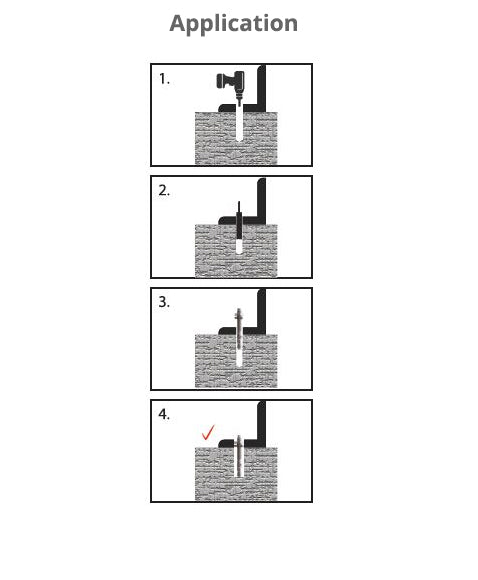

Application:
Drill in substrate a hole of an appropriate diameter
and depth. Clean the drilled hole.
Put the anchor in the hole with the help of hammer.
Screw the bolt in anchor & drive bolt till secure.
RANGE DATA
Article No. | Sizes (Metric) | Sizes L (mm) | Wrench (mm) | Qty/Box (pcs) | EAN |
TFE310880 | M8 | 80 | 13 | 100 | 6902017180802 |
TFE3108100 | M8 | 100 | 13 | 100 | 6902017181007 |
TFE3108120 | M8 | 120 | 13 | 100 | 6902017181205 |
TFE3101080 | M10 | 80 | 17 | 100 | 6902017010802 |
TFE31010100 | M10 | 100 | 17 | 50 | 6902017101203 |
TFE31010120 | M10 | 120 | 17 | 50 | 6902017101203 |
TFE31010150 | M10 | 150 | 17 | 50 | 6902017101500 |
TFE31010200 | M10 | 200 | 17 | 25 | 6902017102002 |
TFE31012100 | M12 | 100 | 19 | 50 | 6902017121003 |
TFE31012120 | M12 | 120 | 19 | 50 | 6902017121201 |
TFE31012150 | M12 | 150 | 19 | 50 | 6902017121508 |
TFE31016100 | M16 | 100 | 24 | 50 | 6902017161009 |
TFE31016120 | M16 | 120 | 24 | 25 | 6902017161207 |
TFE31016150 | M16 | 150 | 24 | 25 | 6902017161504 |
