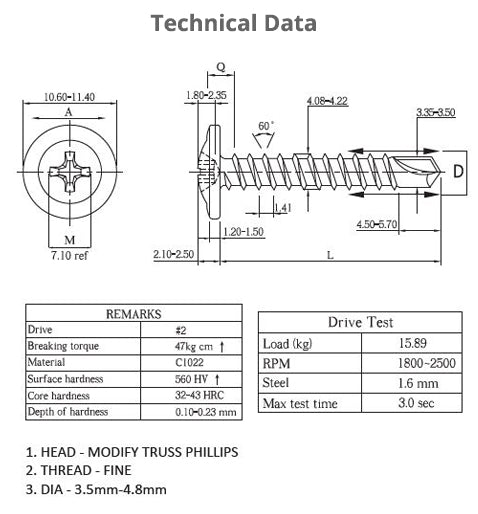

Specifications:

• Carbon Steel C1022
• Phillips Modify Truss Head
• Zinc Plated

RANGE DATA

PRO SERIES

Article No.: Sizes (inches)
D x L		 Sizes (mm)
D x L		 Recess
(M)		 Qty/Box
(pcs)		 EAN
TFF30Z6716 #6×7/16 3.5×11 #2 900 4712017467160
TFF30Z612 #6×1/2 3.5×13 #2 900 4712018458556
TFF30Z61 #6×1 3.5×25 #2 900 4712018452691
TFF30Z812 #8×1/2 4.2×13 #2 900 4712018569627
TFF30Z834 #8×3/4 4.2×19 #2 900 4712017408347
TFF30Z81 #8×1 4.2×25 #2 900 4712017408811
TFF30Z8114 #8×1-1/4 4.2×32 #2 900 4712017481142
TFF30Z8112 #8×1-1/2 4.2×38 #2 450 4712017481128
TFF30Z82 #8×2 4.2×50 #2 450 4712017481821
TFF30Z8212 #8×2-1/2 4.2×65 #2 225 4712017482125
TFF30Z83 #8×3 4.2×75 #2 225 4712017482323
TFF30Z1034 #10×3/4 4.8×19 #2 900 4712017410340
TFF30Z10114 #10×1-1/4 4.8×32 #2 450 4712017101149


ECONOMY SERIES

Article No.: Sizes (inches)
D x L		 Sizes (mm)
D x L		 Recess
(M)		 Qty/Box
(pcs)		 EAN
TFE30Z6716 #6×7/16 3.5×11 #2 900 6902017467163
TFE30Z812 #8×1/2 4.2×13 #2 900 6902017481121
TFE30Z834 #8×3/4 4.2×19 #2 900 6902017408340
TFE30Z81 #8×1 4.2×25 #2 900 6902017408814
TFE30Z8114 #8×1-1/4 4.2×32 #2 900 6902017481145
TFE30Z8112 #8×1-1/2 4.2×38 #2 450 6902017481121
TFE30Z82 #8×2 4.2×50 #2 450 6902017481824
TFE30Z8212 #8×2-1/2 4.2×65 #2 225 6902017482128
TFE30Z83 #8×3 4.2×75 #2 225 6902017482326
TFE30Z1034 #10×3/4 4.8×19 #2 900 6902017410343
TFE30Z10114 #10×1-1/4 4.8×32 #2 450 6902017401143
