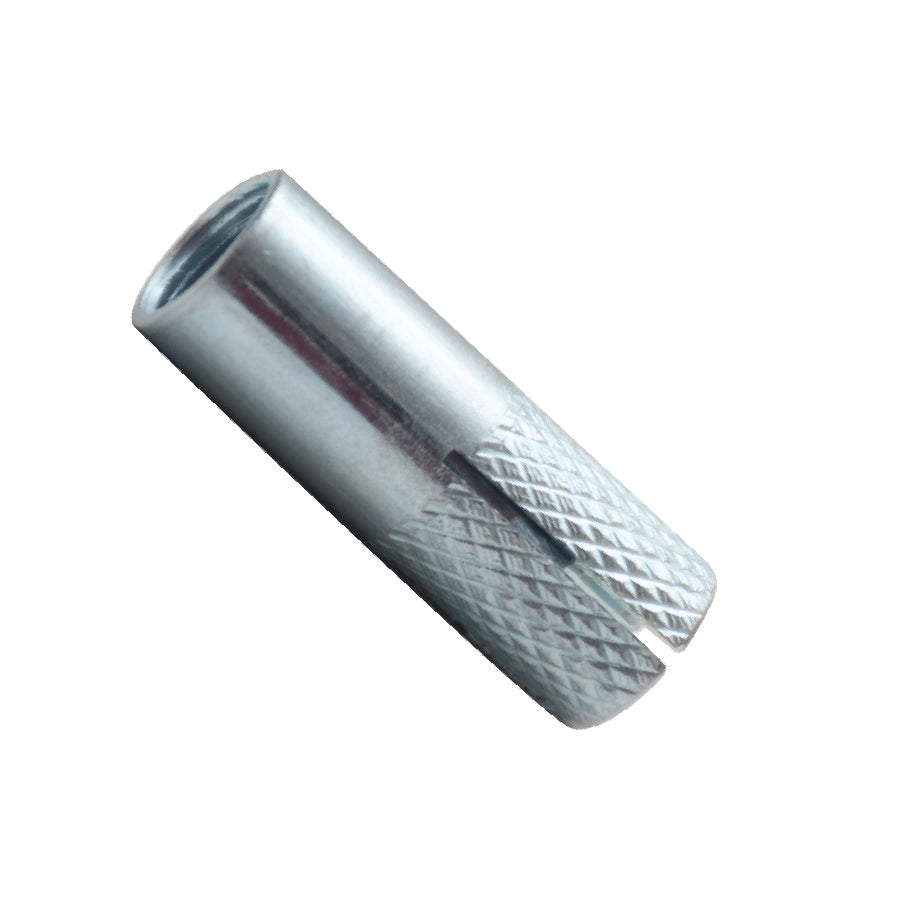

• Manufactured from Q195 Carbon Steel for high strength and durability. • Features a zinc-plated finish for enhanced corrosion resistance and longer service life. • Suitable for fixing threaded rods, suspended ceilings, scaffolding, and ventilation systems with secure and reliable performance.
RANGE DATA
Article No.
Size (metric)
Size (L) mm
Qty/Box (pcs)
DROPANCHM6
M6
25
100
DROPANCHM8
M8
30
100
DROPANCHM10
M10
40
50
DROPANCHM12
M12
50
50
DROP IN ANCHOR LIP TYPE
Article No.
Size (metric)
Size (L) mm
Qty/Box (pcs)
DROPANCHM8X25
M8
30
100
DROPANCHM10X25
M10
40
50
TECHNICAL DATA
Anchor size
Unit
M6
M8
M10
M12
M16
Internal thread length
mm
10
13
15
18
23
Embedment depth
mm
25
30
40
50
65
Minimum structure thickness
mm
100
100
130
140
160
Recommended tightening torque
Nm
4
9
17
30
75

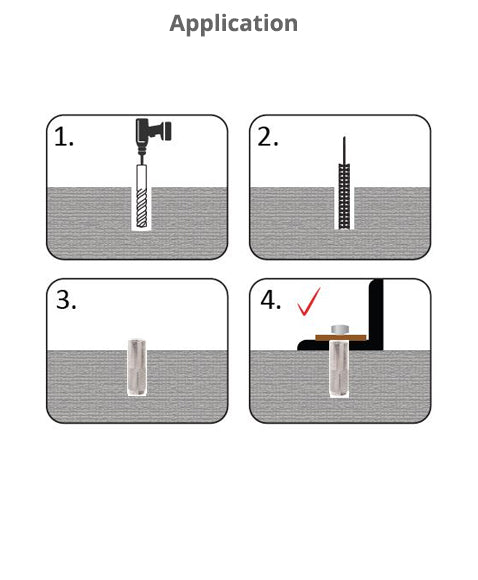

Application:
Drill in substrate a hole of an appropriate diameter and depth. Clean the drilled hole. Put the anchor in the hole with the help of hammer. Screw into the anchor a bolt or a thread rod.
